Fire Ratings

Performance Rating

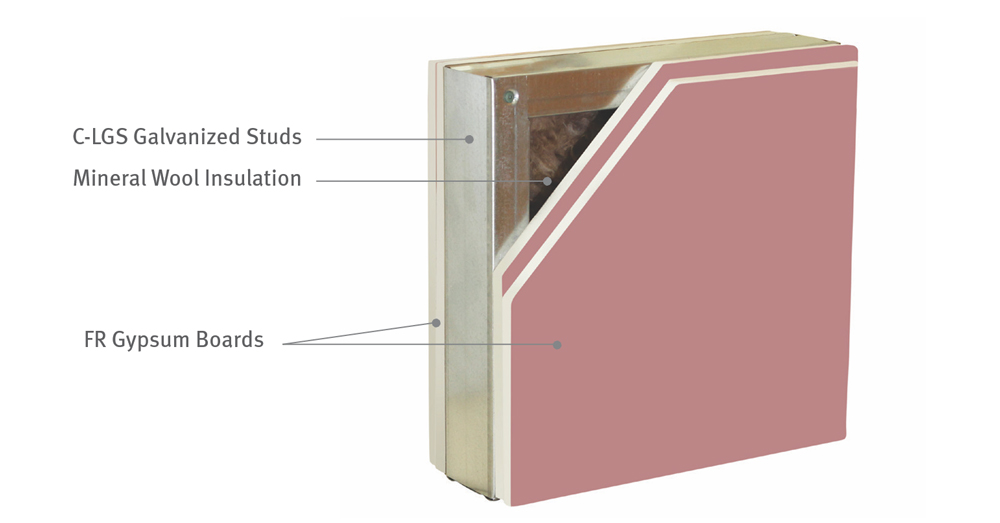

A. Fire Rating Dry Wall Construction as per EN 1363-1, EN 1364-1 Maani FRW 180

Wall Thickness Wall Configuration Maximum Height Maximum Width Fire Rating
149 mm 2 Layers Gypsum Board 2 X 15mm Insulation: Mineral Wool 50mm C-LGS Studs: 89 X 44mm, 0.75mm thick up to 4000mm Unlimited Integrity: Up to 3 Hours Insulation: Up to 2 Hours

B. Fire Rating Dry Wall Construction as per EN 1363-1, EN 1365-1 Maani FRW 90

Wall Thickness Wall Configuration Maximum Height Maximum Width Fire Rating
119 mm 2 Layers Gypsum Board 1 X 15mm Insulation: Mineral Wool 50mm C-LGS Studs: 89 X 44mm, 0.95mm thick up to 4000mm Unlimited Integrity & Insulation: Up to 1:30 Hours

Fire Ratings

Performance Rating

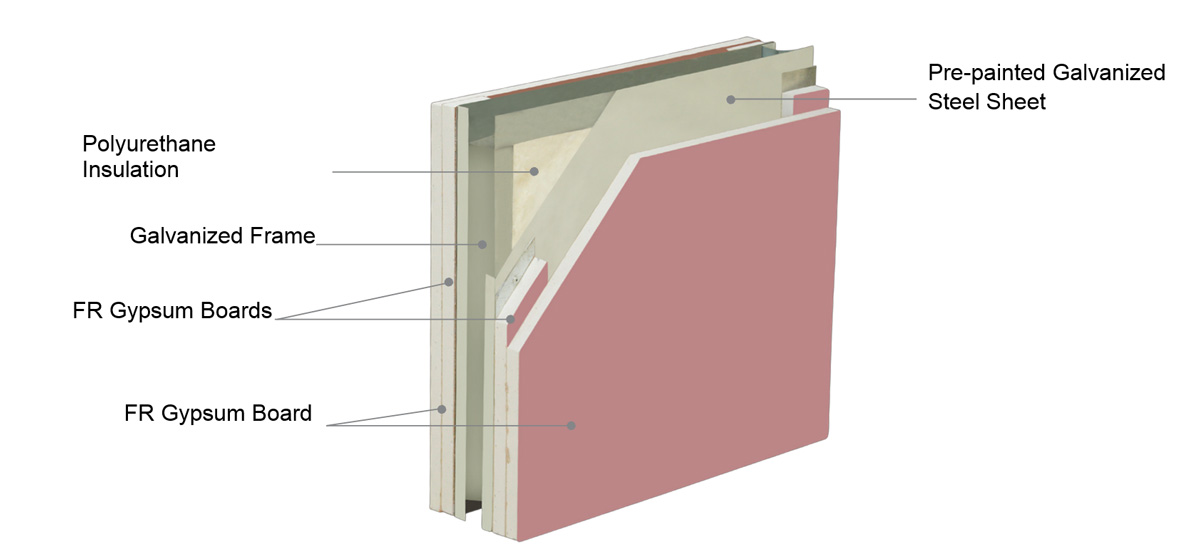

A. Fire Rating Dry Wall Construction as per EN 1363-1, EN 1364-1 Maani FRS 60

Wall Thickness Wall Configuration Maximum Height Maximum Width Fire Rating
114 mm Sandwich Panel 1 X 50 mm 2 Layers Gypsum Board 1 X 15 mm Insulation: Polyurethane 49 mm up to 4000mm Unlimited Integrity & Insulation: Up to 1 Hours

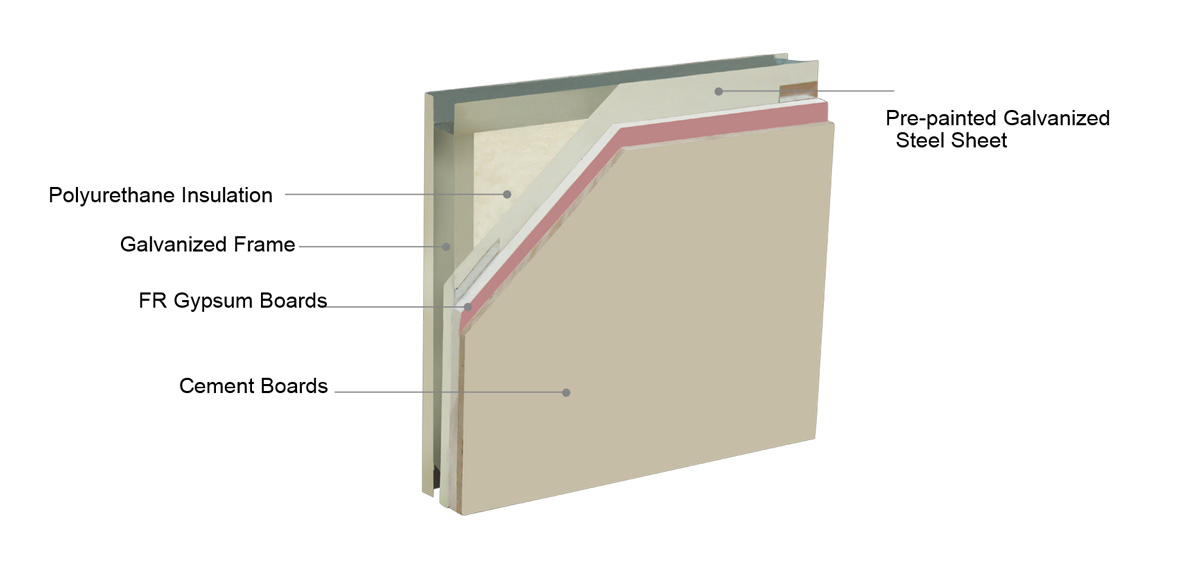

B. Fire Rating Dry Wall Construction as per EN-1363-1, 1364-1 Maani FRS 45

Wall Thickness Wall Configuration Maximum Height Maximum Width Fire Rating
79 mm Sandwich Panel 1 X 50 mm 1 Layer Gypsum Board 1 X 15 mm 1 Layer Cement Board 1 X 12 mm Insulation: Polyurethane 49 mm up to 4000mm Unlimited Integrity & Insulation: Up to 45 min
